RFID Proximity Reader Module

Integrates the functions of proximity card reader for lock, access control or serial control into a module.

125 kHz embedded proximity card reader module.
Provides the functions of a proximity reader on a single integrated circuit.
With compact size (36.5mm x 18.5mm).
In standard 600 mil DIP-28 package, small enough for putting into your application.
Adapts easily into various enclosures.
Ideal for third party lock or reader manufacturers who integrate the module into their products.
Antennas and proximity cards are also available for your convenience.

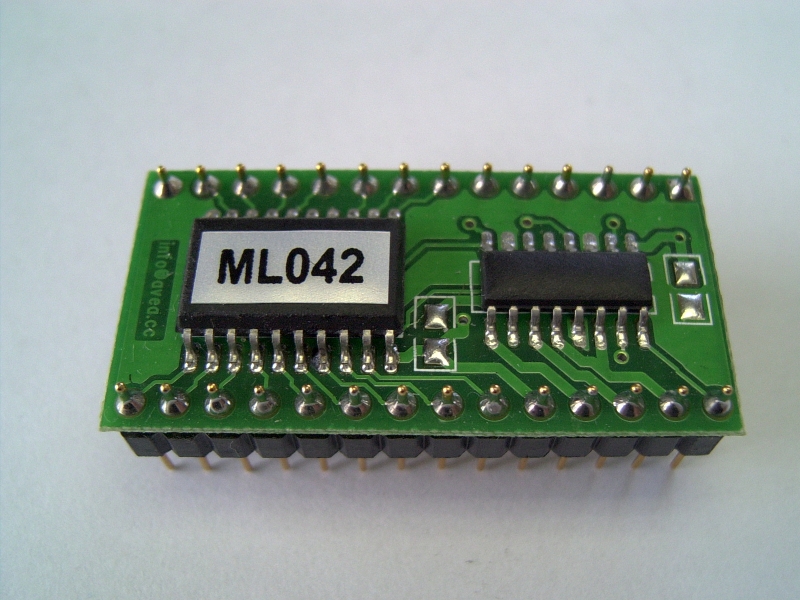

	ML042 - Proximity Card Access Control Module
	Embedded module with complete access control functionalities. By adding small amount of surrounding components, a restricted access control can be implemented. It can accept upto 42 proximity cards.

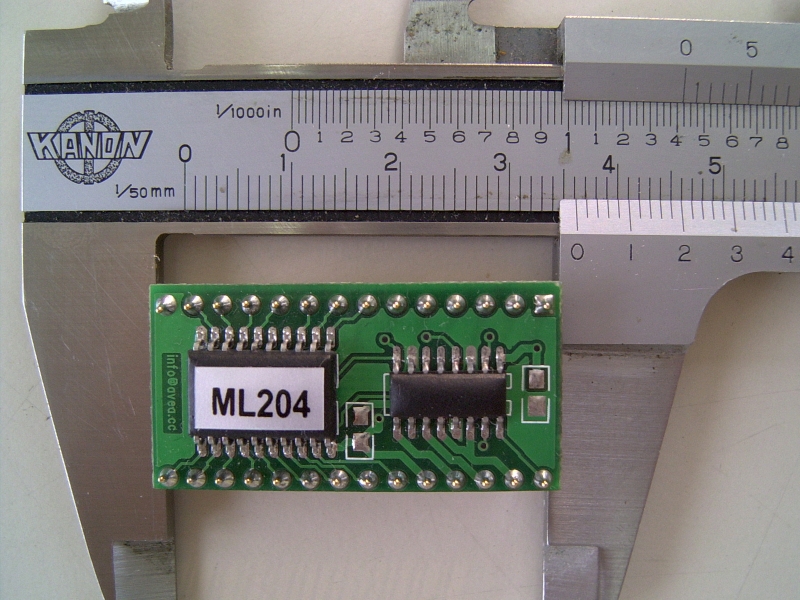

	ML204 - Proximity Card Access Control Module
	Embedded module with complete access control functionalities. By adding small amount of surrounding components, a restricted access control can be implemented. It can accept upto 204 proximity cards.

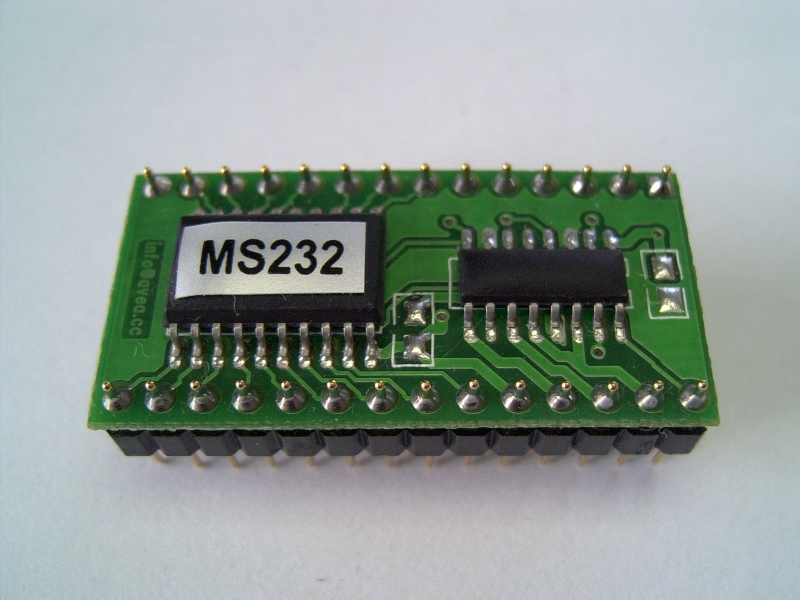

	MS232 - Proximity Card Reader Module
	Embedded module with complete proximity card reader functionalities. By adding the power supply and connects to your embedded controller through a serial port, your application can now read the proximity cards.
