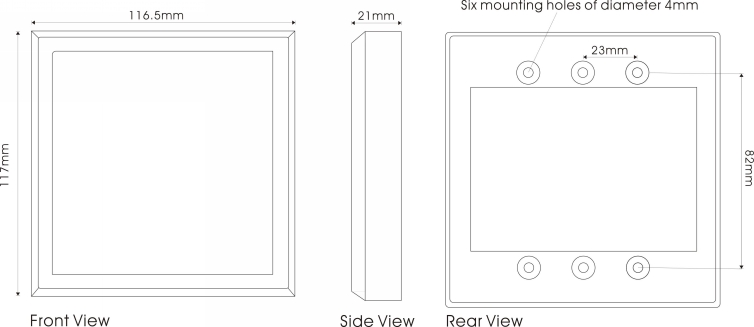

Size:116.5mm x 117mm x 21mm

• Standalone Access Controller
• Build in RS232 port to PC
• Tamper switch
• Support Master and Slave mode
• Easy and simple to use
• Mechanical relay output terminals for external controlling
• Output terminals to drive electric lock directly
• Accept up to 2730 ID cards
• Use MASTER and ACTION card to delete/remove individual ID card number

PLUS CARD KEEPER Software (Free download from here)
- uploading the authorization table from PC with just a "click"
- save and merge card database file
- export data to Excel file format
Click here for Card Keeper's user manual

• Provides performance and reliability with a stylish appearance
• Provides a keyless environment without card slot and associated maintenance costs.
• Mount directly on electrical box for easy installation.
• Power supply 9 to 12V, 300mA.
• High reliability and consistent read range.
• LED Indicator : Green and Red.
• Size : 116.5mm x 117mm x 21mm
• Color : Grey
