RFID Proximity Reader Demo Board

All demo boards include an antenna and two pieces of proximity cards.

• High level of RFID's design flexibility.
• Adapts easily into various enclosures.
• Assembled and tested.

	KL042A - Proximity Card Access Control Demo Board This is an low cost proximity card access control demo board. It has two outputs and an input contacts. One output is the relay contacts with NC and NO connection. The other output is power output for driving external devices. While the input contacts allow granting access without an proximity card. The KL042 kit can accept a maximum of 42 proximity cards. By adding an electric lock to a door with the KL042, restricted access can be easily implemented for that door.

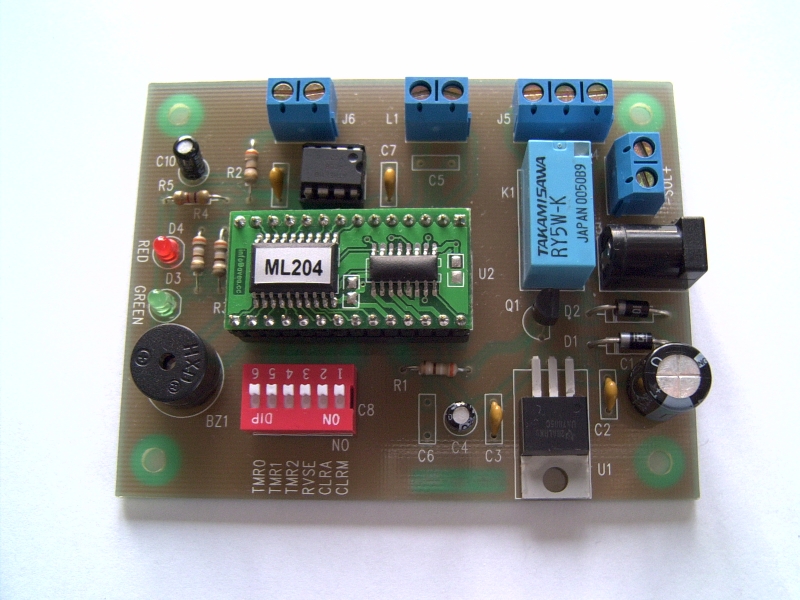

	KL204A - Proximity Card Access Control Demo Board This is an low cost proximity card access control demo board. It has two outputs and an input contacts. One output is the relay contacts with NC and NO connection. The other output is power output for driving external devices. While the input contacts allow granting access without an proximity card. The KL204 kit can accept a maximum of 204 proximity cards. By adding an electric lock to a door with the KL204, restricted access can be easily implemented for that door.

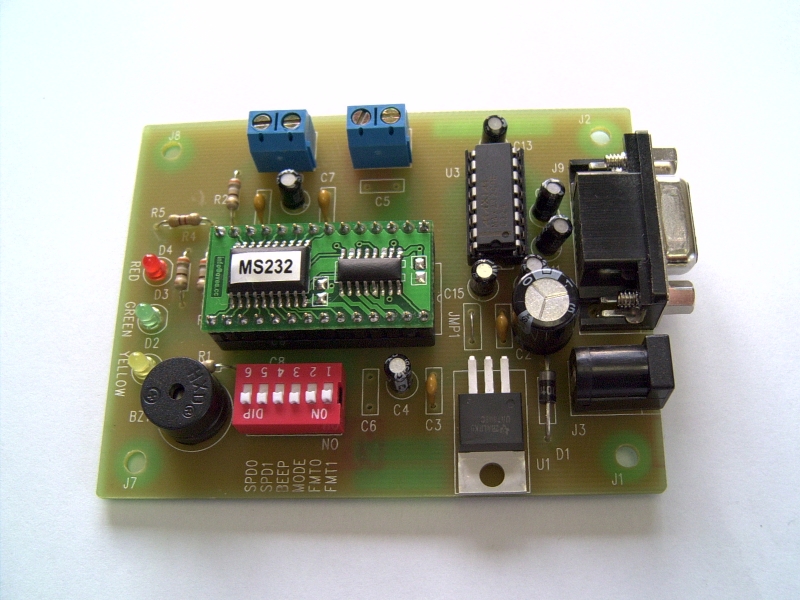

	KS232A - Proximity Card Reader Development Board This is an low cost proximity card reader which output the card data to a RS232 port. It provides two user controllable lamps and an input contacts. By connecting the power and DB9F-to-DB9M straight cable to a PC, using a dump terminal program (like hyper terminal) can read out the card data, read out the input contacts status, and also control the lamps on the board. It is extremely easy to write an application software to make use of proximity card technology.
