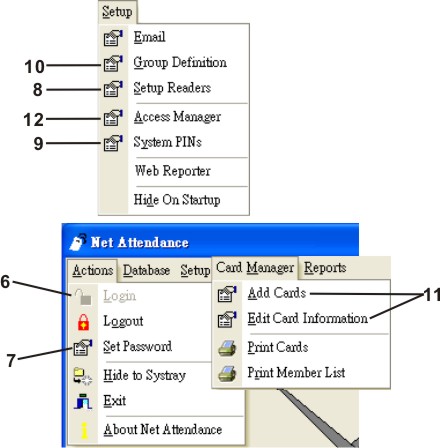

Quick Start *** Always remember to POWER OFF before pluging or unpluging wires 1. Connect cables and power 2. Setup the reader’s IP address and parameters >>Click here to see the details 3. Turn on the computer. 4. Download and install the NET Attendance software >>Click here to download 5. Print and follow the User Manual of NET Attendance from Start for details of NET Attendance's Setup. >>Click here to download & print 6. Login the NET Attendance to start SETUP. 7. Setup the password for LOGIN (Password cannot be reversed) 8. Setup the RFID reader >>Click here to see the details 9. Setup the System PIN >>Click here to see the details 10. Define the workgroup for reports >>Click here to see the details 11. ADD Cards and enter Card Information >>Click here to see the details 12. Setup the Access Manager and "PUT" setting >>Click here to see the details ---------------------------------------------------------------------------------------------------- Finished setup. Present the ID card on the reader. The TCP54A will store the card information and your NET Attendance software will collect the REAL time data right away.
*** Always remember to POWER OFF before pluging or unpluging wires
1. Connect cables and power
2. Setup the reader’s IP address and parameters >>Click here to see the details
3. Turn on the computer.
4. Download and install the NET Attendance software >>Click here to download
5. Print and follow the User Manual of NET Attendance from Start for details of NET Attendance's Setup. >>Click here to download & print
6. Login the NET Attendance to start SETUP.

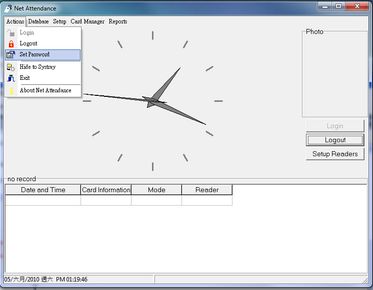

7. Setup the password for LOGIN (Password cannot be reversed)
8. Setup the RFID reader >>Click here to see the details

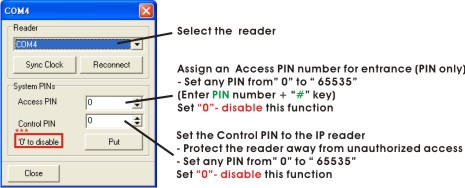

9. Setup the System PIN >>Click here to see the details
10. Define the workgroup for reports >>Click here to see the details

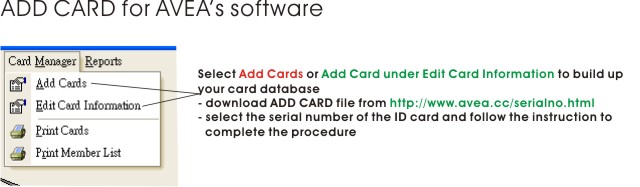

11. ADD Cards and enter Card Information >>Click here to see the details

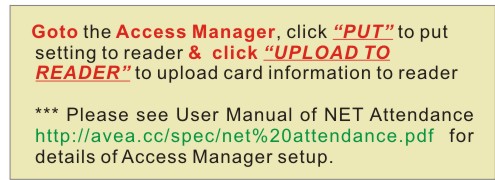

12. Setup the Access Manager and "PUT" setting >>Click here to see the details
----------------------------------------------------------------------------------------------------
Finished setup. Present the ID card on the reader. The TCP54A will store the card information and your NET Attendance software will collect the REAL time data right away.
